Product Details
Structural Material & Panels
Mild Steel, Corten Steel, Aluminium, Galvalume & Galvanized Iron
Paint Specification
Epoxy Zinc rich/ Red Oxide Primer, Top coat Synthetic enamel/ Epoxy/ PU, or fire resistant cafco sprayfilm wb3 (water based intumescent coating)
Custom Sizes
Standard sizes 20’x8’x8’6”/9’6”, 20’x10’x8’6”, 40’x8’x8’6”/9’6” & 40’x10’x9’6” From 4’x4’ to 60’x15’ single shell container, height upto 15’
Insulation Chart
| NAME OF MATERIAL | DIFFERENT TYPES AVAILABLE |
| Internal Insulation - 50mm/75mm/100mm | Glass wool/Rockwool/Puff/Fiberglass/EPS Board/Thermocol |
| Wall Paneling Or Room Finish | PPGI Panels/Wooden Panels/PVC Panels/Aluminum Composite Panel/Plaster Of Paris with calcium silicate board/ Gypsum Board/ pre laminated MDF/ Wall tiles/ Wallpaper |
| Roof Paneling Or Roof Finish | PPGI panels/False Ceiling/Grid Ceiling/Wooden Panels/PVC Panels/Aluminum Composite Panel/ Plaster Of Paris with calcium silicate board/ Gypsum Board/ pre laminated MDF/ Wallpaper |
| Flooring | Vinyl/Ceramic Tiles/Marble/Wooden |
| Wiring All Electrical Item Of ISI Standards | All wiring shall be concealed and shall be PVC insulated copper Wires of ISI quality (Make Havells), suitable for 240 volt, 50 HZ single phase AC Power supply. 2.5 mm thick cable for lighting, 5 amp switches & Socket & 15 Amp Socket, 2.5 mm thick cable for main electrical supply & with MCB protection With A.C. Provision. |
| Lighting | Cove Lights/Led Lights/Tube Lights/Grid Light |
| Power Plugs And Sockets | 2.5/5/10/13/15/16/20 Amps And Even More |
| Connectors | Intercom/Internet/Ethernet |
| Circuit Breaker | MCB/RCCB/ELCB/RCBO |
| Air conditioner 1T/1.5T/2T | Split/Window/Portable |
| Furniture/Furnishing | |
| Workstations | Wooden/PVC |
| Table | Marble Top/Wooden Top/Glass Top Table/PVC Table |
| Chairs | Executive/High-End |
| Sofa | Sofa |
| Storage Compartments | Overhead/4' High/Full Height |
| Door | Wooden/PVC |
| Window | UPVC/Aluminum Sliding or Fixed window |
| Paint | Epoxy/Zinc rich Primer and double coated Enamel/PU Paint for MS Finish with 120 DFT(u). Under structure Zinc Rich 40 and bitumen Black 180 DFT (u) |
| Toilet Accessories | 1. EWC (Make Parryware) 2. Washbasin (Make Parryware) 3. Shower (Make Parryware) 4. Urinals (Make Parryware) |
| Exterior paneling | Mild Steel Corrugated Sheets 1.6 mm thick or CORTEN “A” corrugated profile. |
| Base frame | 4.5 MM thick mild steel sheet profiled 2 nos of side bottom rail made of IS2062, The cross members are made of pressed channel section Mild Steel 4 MM IS2062. The cross members are placed to fully withstand floor strength and welded to each bottom side rail. 28 MM Marine ply mounted/screwed on cross members and Fork Pocket Upper 3MM & lower 6MM |
| Corner post | 6 MM thick mild steel sheet pressed section with inner 12 MM thick C channel continuously welded from the inside to provide extra bracing for Rear post only. |
| Top frame & Roof | 60x60x3 mm thick hollow section rectangular tube. With 2 MM Roof panel die stamped made of MS to assist in water drainage. Self draining roof made of MS IS2062, having upward smooth chamber for rain water drainage. |
| Corner hook | ISO Corner Casting 8 Nos. in container for lifting. |
| Door | Constructed of Rigid Steel Frame work by 96mm X 48mm X 3.2 mm (thick) Hollow pipe and horizontal 3mm MS sheet profile section bend. external wall made by Panels 1.6 MM thick MS & Inner wall decorated by 4 mm ACP sheet with suitable door handles, automatic door closer and aldrope, for small doors (6'6"'x3') |

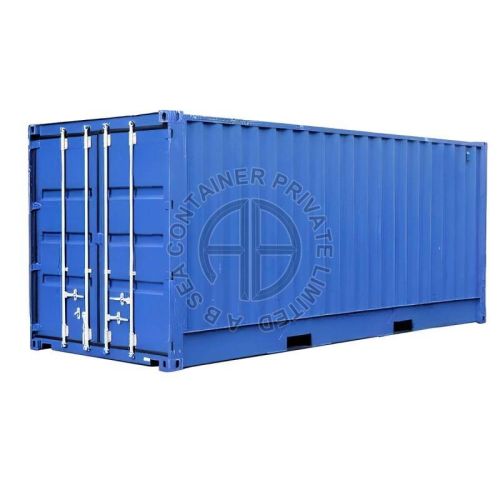

Looking for "Dry Freight Container" ?
